What are the winding temp sensor ratings?
RTHA/RTHB / CHHA Compressor
Refer to RTHA-SB-5A page 26 and RTHB-SB-5. See the details below.

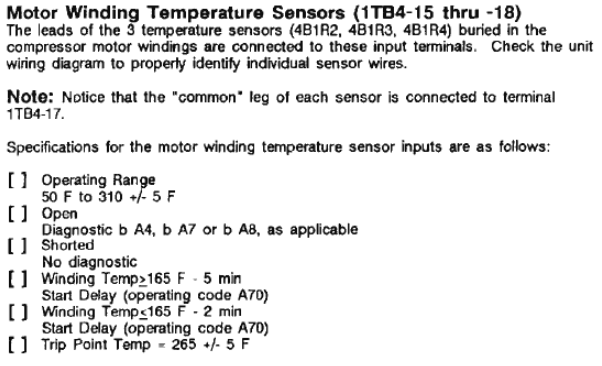

Motor Winding Temperature Sensors (1TB4-15 thru -18)
The leads of the 3 temperature sensors (4B1R2, 4B1R3, 4B1R4) buried in the compressor motor windings are connected to these input terminals. Check the unit wiring diagram to properly identify individual sensor wires.
Note: Notice that the "common" leg of each sensor is connected to terminal 1TB4-17.
Specifications for the motor winding temperature sensor inputs are as follows:
- Operating Range: 50 F to 310 +/- 5 F
- Open: Diagnostic b A4, b A7 or b A8, as applicable
- Shorted: No diagnostic
- Winding Temp ≥ 165 F: 5 min Start Delay (operating code A70)
- Winding Temp ≤ 165 F: 2 min Start Delay (operating code A70)
- Trip Point Temp: = 265 +/- 5 F
Additional details
Other Question/Problem/Cause Statements
- What are the winding temp sensor ratings?
- What are the terminations for the motor temperature sensors?
- CHHA motor temperature sensors
Facts
- Water-Cooled Chiller (Pueblo) (RTHA)
- Water-Cooled Chiller (Pueblo) (RTHB)
