Issue:
Serial (CH530) to USB Cable
Resolution:
Rover USB to Serial Converter is the only USB to Serial Converter supported by Trane Controls Engineering Group. Other converters and converter drivers may not be compatible with TechView, KestrelView and DynaView.
Serial cable = 6' RS-232 (p/n CAB01175)

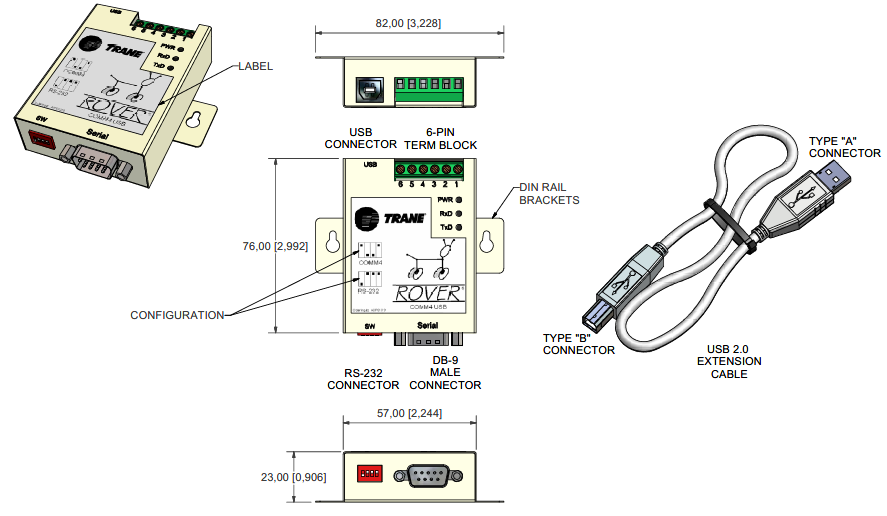

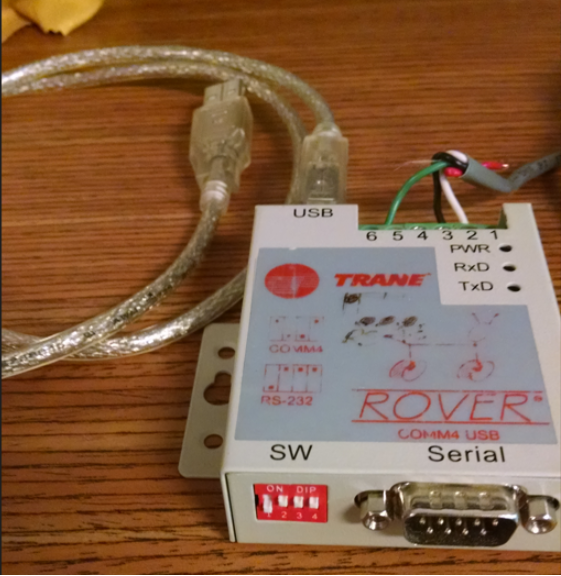

Rover USB (p/n ADP01161)
- Non-Trane Supplier: USBgear : Model USB-COMi-M
- This is not the approved device and may result in unexpected issues
Notes:
Use of other converters can cause connection and communication issues.
Resource Available:
-
Tech TV Video(s):
- https://hub.tranetechnologies.com/videos/1210
-
Reference Literature: (Electronic copies can be pulled from e-library at Trane Residential (tranetechnologies.com))
- IOM:
- Service Guide:
-
Other:
- N/A
Changes:
Other Question/Problem/Cause Statements:
- What is the serial to usb cable we use to connect to a DynaView
- USB to Serial cable
- USB to Serial adaptor
- What cable do we use to connect to an RTAC
- What is the DynaView Cable and using a USB connection
- Need a USB to Serial adapter for Techview
Facts:
- Air-Cooled Chiller (Pueblo)
- Water-Cooled Chiller (Pueblo)
- CH530 Controls
Document Identifier: DOC-91323
